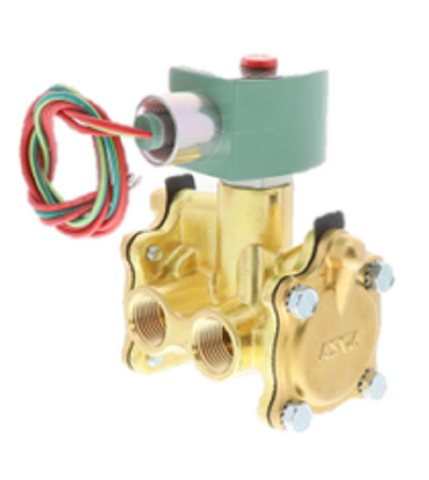

ASCO 8316G64 Valve

Valve, Solenoid, 3 Way Normally Closed, 1/2", NPT, 120Vac, 3.2 Cv 10-150 PSI Air and 10-125 PSI Water Pilot Operated Brass Body with NBR Seal and Brass Disc and Nema 4X Enclosure

ASCO 8316G64 3-Way Solenoid Valve – Reliable Control for Air and Water Applications

The ASCO 8316G64 Solenoid Valve is a high-performance, 3-way normally closed (NC) valve designed for operating single-acting cylinders and other air-operated equipment. Featuring a pilot-operated design, this valve requires a minimum 10 PSI pressure differential for optimal performance, making it a dependable solution for industrial applications involving air and water control.

Key Features:

• Versatile Application: Suitable for air (10-150 PSI) and water (10-125 PSI) systems, ensuring flexible use across multiple industries.
• Durable Construction: Built with a brass body and a Buna-N (NBR) seal for long-lasting performance in demanding environments.
• Precision Control: Offers a 3.2 Cv flow factor, ensuring accurate flow regulation.
• Easy Installation: Equipped with a 1/2" NPT connection for secure and straightforward installation.
• Weather-Resistant: Comes with a NEMA 4X enclosure, providing protection against water, dust, and corrosion for reliable outdoor and indoor use.
• Multiple Voltage Options: Available in 24, 120, 240 VAC and 6, 12, 24, 120, and 240 VDC, catering to diverse electrical setups.

Specifications:

• Model: ASCO 8316G64
• Operation: 3-Way Normally Closed, Pilot Operated
• Pressure Range: 10-150 PSI (Air), 10-125 PSI (Water)
• Voltage: 120 VAC (other voltage options available)
• Flow Factor: 3.2 Cv
• Connection: 1/2" NPT
• Body Material: Brass
• Seal Material: Buna-N (NBR)
• Disc Material: Brass
• Enclosure: NEMA 4X
• Minimum Pressure Differential: 10 PSI

Upgrade your system with the reliable ASCO 8316G64 Solenoid Valve for precise control over air and water flow in industrial applications. Order now to enhance performance and reliability in your operations!
