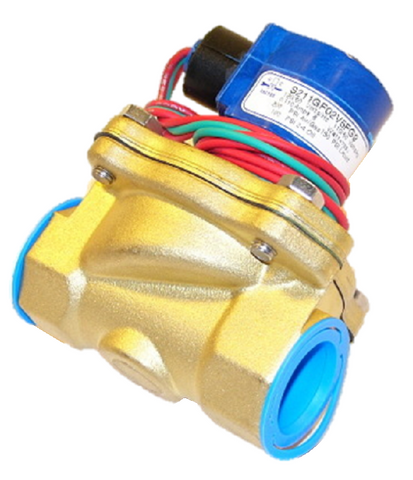

GC Valves S211GF02V5FG9 Solenoid Valve

Solenoid Valve, 1" NPT, Normally Closed, Brass Body, Coil Class F, 120Vac, Viton Seal Material, 1" Orifice

GC Valves S211GF02V5FG9 Solenoid Valve – 1" NPT, Normally Closed, Brass Body, 120Vac with Viton Seal

The GC Valves S211GF02V5FG9 Solenoid Valve is a high-performance, normally closed solenoid valve designed for a wide range of applications involving aggressive media, air, neutral gases, light oils, slightly aggressive media, steam, and water. Featuring a durable brass body, this valve provides exceptional reliability and is ideal for use in systems requiring precise control of fluid flow.

Key Features:

• Model/Part Number: S211GF02V5FG9

• Valve Series: S21

• Function: 2-Way Normally Closed

• Coil Class: F (Class F coil for high-temperature applications)

• Voltage: 110V/120V AC

• Seal Material: FKM (Viton) for enhanced chemical resistance

• Body Material: Brass for superior durability

• Pipe Size: 1" NPT for secure, leak-free connections

• Orifice Size: 1" for efficient flow control

• Media Types: Suitable for aggressive media, air, neutral gases, light oil, slightly aggressive media, steam, and water

• Housing: 1/2" Conduit, NEMA 4X rated for weather-resistant and rugged environments

• Approvals: CE, CSA, UL for global compliance and safety standards

• Valve Type: Diaphragm

Applications: The GC Valves S211GF02V5FG9 Solenoid Valve is ideal for controlling the flow of fluids in systems that involve harsh or corrosive environments, making it perfect for industrial, HVAC, and fluid control systems.
