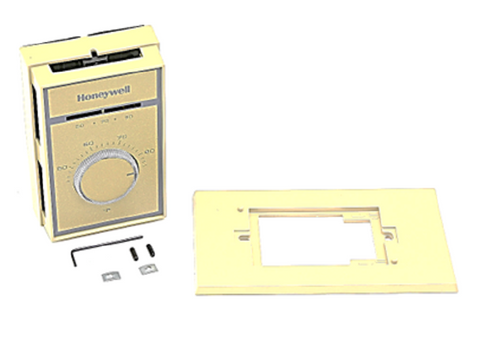

Honeywell T651A3018 Thermostat

Honeywell T651A3018 Thermostat

  • $172.72


Light and Medium Duty Line Voltage Thermostat, 120/240Vac, 44-86 Degree Setting Temperature Range, 2 Degree Differential Temperature, SPDT-Breaks Heating and Makes Cooling Temperature Rise, Heating and Cooling Switch Position Vapor Filled Dual Diaphragm Sensor Element, Champagne Gold Face Plate with Beige Cover, Includes Vertical Scaleplate with Thermometer, Horizontal Scaleplate without Thermometer Range Stops and Locking Cover Screws, Wall Plate, High Accuracy Dual Diaphragm Sensor, 22 Amps Resistive @ 120-240Vac, 19 Amps Resistive @ 277Vac, 9.8 Amp Full Load @ 120Vac, 58.8 Amp Locked Rotor 120Vac, 5.6 Amps Full Load @ 208Vac, 33.6 Amps Locked Rotor @ 208Vac, 4.9 Amps Full Load @ 240Vac, 29.4 Amps Locked Rotor @ 240Vac, 4.2 Amps Full Load @ 277Vac, 25.2 Amps Locked Rotor @ 277Vac

T651A3018 is the direct replacement for T451A3005, LV3
